250W Anodizing Aluminum Solar Panel Frame with Key Corner

250W Anodizing Aluminum Solar Panel Frame with Key Corner

  • Grade
    6000 Series
  • Temper
    T3-T8
  • Application
    PV Solar Panel
  • Shape
    Square
  • Alloy Or Not
    Is Alloy
  • Colour
    Silvery, Black, Any Color Is Available As Per Require
  • Surface Treatment
    Anodized, Powder Coating, Electrophoresis, Wooden-pattern Transfer...
  • Lifetime
    More Than 15 Years
  • MOQ
    2000sets
  • Company Honor
    China Famous Trademark
  • Skype
    James.wang0307
  • WeChat
    Jameswang0307
  • WhatsApp/Viber
    86 18662963676
  • QQ
    1021035269
  • Production Capability
    6500 Tons/month
  • OEM/ODM
    Available
  • CO,FormA, FormB, FormE...
    Available
  • Samples
    Free
  • Place of Origin
    Jiangyin, Jiangsu, China
  • Brand Name
    YueFeng
  • Certification
    ISO9001
  • Model Number
    YF-030
  • Minimum Order Quantity
    2000Sets after confirmed the samples
  • Packaging Details
    EP paper + Cartons + Plywood pallet, as per export packing standard, custom packing is available
  • Delivery Time
    within 18 days after received your deposits
  • Payment Terms
    50% should be paid before produce, the balance should be paid before shipment.
  • Supply Ability
    6500Tons/Month

250W Anodizing Aluminum Solar Panel Frame with Key Corner

Detailed product description

Material

aluminum alloy:  6061/6063/6005/6060 T3-T8

Shape

according to drawing and sample (square, angle, flat, T-profile, rotundity, oval, slot)

Deep machining

precise cutting, drilling, tapping, CNC milling, CNC lathe and so on.

Surface treatment

polishing, anodized, electroplate, powder coating, sandblasting, painting…







product dimensions

1) 30 * 25 mm, suitable for 30-120 watts of solar components;

2) 35 * 35 mm, suitable for 80-180 watts of solar components;

3) 50 * 35 mm, suitable for 160-220 watts of solar components;

4) many other customized size, such as 17 * 17 mm, 20 * 20 mm, 23 * 17 mm, 25 * 25 mm * 25 mm, 35 * 30 mm, 40 * 28 mm, 40 * 30 mm, 40 * 35 mm, 42 * 35 mm and 45 * 35 mm, 46 * 30 mm, 46 * 35 mm, 48 mm *, 46 * 50 mm, 46 * 60 mm, 35 mm * 60, and so on.











Commonly used specifications

1956 * 992 * 50 mm

1650 * 992 * 45 mm

1640 * 992 * 45 mm

1580 * 808 * 40 mm

1576 * 808 * 40 mm

1482 * 670 * 40 mm

1200 * 545 * 35 mm

 754 * 669 * 30 mm

 824 * 545 * 30 mm

 620 * 286 * 30 mm

 540 * 342 * 25 mm

Other border length according to customer requirements production

Processing Two types

(1) 90°-Angle

(2)45° -Angle

Specifications

According to your design drawings and your samples

Certification

ISO9001-2008

Packaging Detail

Export Standard Carton With Pallet, interleaving each profile to protect the surface

Delivery Detail

Delivery time :10-15 days for tooling production & 15-20 days

















Advantage of our products

1. Excellent quality:  the complete quality control system is guaranteeing 100% measure up. In addition, our company fully had accredited by ISO9001: 2008.

2. Excellent equipments: we imported the equipments from Japan and German, and the precision of the fine molds can reach 0.02mm.

3. Enormous output: we can make customized products with different specifications with stable quality.

4. Reasonable and competitive price: We according to customer's requirements and related reference data, after company research and development departments to study and quote a reasonable price for our customers.

5. Superior service: We will provide customers with satisfactory products and on product packaging, logistics, warehousing and distribution link attaches great importance to, so as to enhance the level of the company as a whole, in integrated services to ensure that products in the stipulated time arrived at the customer designated destination.





Solar frame advantage in the field of photovoltaic applications

1. corrosion resistance, oxidation resistance is strong;

2. strength and strong robustness;

3. strong tensile resistance performance;

4. elastic ratio, rigidity, high metal fatigue value;

5. transport, installation is convenient, the surface does not produce scratches oxidation, does not affect performance;

6. through the convenience of different materials, can adapt to various environment;

7. in 30 to 50 years service life.



Typical chemical composition  (GB/T3190)

Aluminum Grade

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

impurity

Al

0.2-0.6

<0.35

<0.1

<0.1

0.45-0.9

<0.1

<0.1

<0.1

<0.15

Rest

0.4-0.8

0.7

0.15-0.4

0.15

0.8-1.2

0.04-0.35

0.25

0.15

≤0.15

Rest



  6063



6061

remarks

If you are interested in our products and want to know further information, please contact us, we are very glad to offer you more details.

Contact: Mr. james wang

Mob:0086 18662963676

Skype: james.wang0307

More information or products please enter our Website: http://www.profiles-aluminum.com; or http://aluminum-extrusion.sell.everychina.com/.

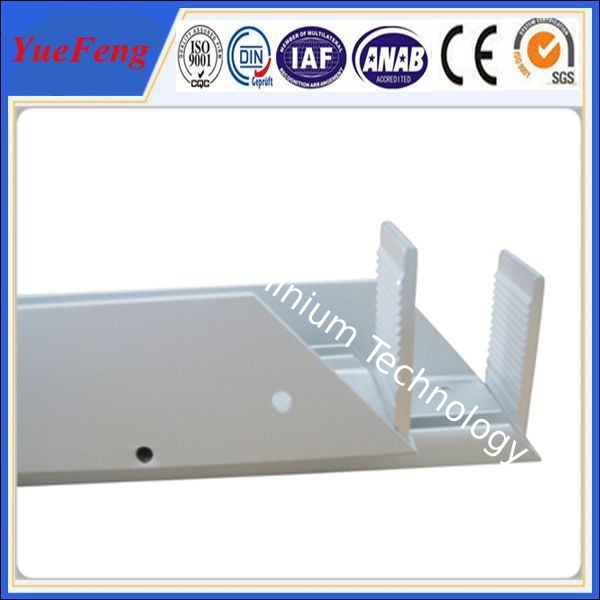

250W Anodizing Aluminum Solar Panel Frame with Key Corner 0
