aluminium product manufacturer,solar mounting supplier/industrial aluminium profile,OEM
1.High hardness, hard aluminum series.
2.Fair corrosion resistance. Heat treatable
3.Good workability and Good appearance
4.High quality and reasonable price.
5.china's leading manufacturer with more than 10 years experienced
YueFeng Technology is China's leading manufacturer of aluminum extrusion, aluminium profiles, aluminum windows&doors profiles, industry profiles, heat sinks, solar frame, solar mounting, aluminum tubes, LED profiles, Electric shell profiles, shutter doors profiles, all kinds of custom aluminum extrusion as per customer's drawings or samples.
1.Specification of aluminum pv solar rail mounting
Mount Type | |
Applicable roof cladding | roof mount,ground mount,carport mounting rail |
Applicable Module | framed or frameless panel |
Module Orientation | landscape or portrati |
Wind load | 130mph(60m/s) |
Snow load | 30psf(1.4KN/m2) |
Material | aluminum alloy and stainless steel 304 |
Warranty |
10years |
2.Features of YUEFENG Solar rails
1).Easy Installation.
The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.
2).Great Flexbilitity.
The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.
3).High Accuracy.
Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4).Maximum Lifespan:
All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
5).Guaranteed Durability:
Wanhos Solar provides a guarantee of 10 years on the durability of all components used.
If you want to know about more information, please contact us or call me 0086 18662963676 (Urgent things), weblink:http://www.profiles-aluminum.com; aluminum-extrusion.sell.everychina.com.
Brief Installation Plan for corrugated tin roof solar mounting system
1,L-feet group installation
1),Mark the installation position
2),Bolt L-feet to the rafter
2,Rail installation
1),Slide the G-module into the rail and fasten it in the right position
2),Install the rail on the L-feet with G-module
3,Pv panel Installation
The Specification of PV Mounting Tin Roof Structure ,
ST Solar Tin Roof Hook System |
Optional Size |

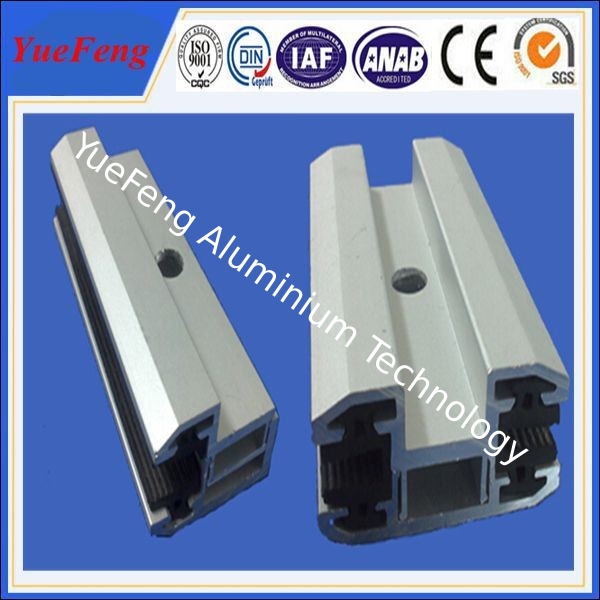

Mid Clamp |
35-50 mm |
End Clamp |
35-50 mm |
Roof Hook |
For kinds of Metal Roof types |
The Metal Ground Screw has been widely used in the conctruction of the Solar Power Plant from these years, for its
easily installation and the perfect perform in anti-corrosion & wear-proof. With such metal ground screws, installtion
could be realized in so many kinds of places, such as those not so even ground or the ground with slopes, which will
largely reduce the cost for the plant construction. YUEFENG metal Ground Screw has been focusing on customising any
length and other requirements of the customer.
Installation Sites: | OPen Ground |
Foundation Solustions: | Concrete Foundation/ Steel Foundation |
Main Materials: | Steel Tube Q235B |
Finishing: | Hot-dip Galvanized |
Fasteners Materials: | Stainless Steel SUS304 |
Diameter: | Φ76mm |
Tube Thickness: | 4mm |
Length: | 1000-2000mm |
Finishing Thickness: | ≥80µm |
G.W/PCS | 10-15kg |
Loading/40'GP | 1600-2200pcs |
Packing: | Steel Pallet with film PVC |
Design Standards: | JIS C 8955:2011; AS/NZS 1170; DIN 1055; IBC 2009 |
Warranty: | 20-25 years life span |
Reasons to choose YUEFENG mounting system ,
Which Datas need provide when inquiry,
-----------
Dear Buyer,
In order to help you get the right system, please offer the following necessary info.,
1. The dimension of the solar panel: _________(L*W*T)
2. Tin roof photo or section: __________
3. The overall size of the PV array:____________
4. Wind load and snow load: ____________
5. The height of building:_______________
6. The order quantity for us to confirm delivery and shipping:______________
