Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system

Aluminum Profiles for Solar Mounting



1.High hardness, hard aluminum series.

2.Fair corrosion resistance. Heat treatable

3.Good workability and Good appearance

4.High quality and reasonable price.

5.china's leading manufacturer with more than 10 years experienced



YueFeng Technology is China's leading manufacturer of aluminum extrusionaluminium profilesaluminum windows&doors profilesindustry profilesheat sinkssolar framesolar mountingaluminum tubesLED profilesElectric shell profilesshutter doors profiles, all kinds of custom aluminum extrusion as per customer's drawings or samples.



1.Specification of aluminum pv solar rail mounting

Mount Type

pv aluminum solar rail mounting

Applicable roof cladding roof mount,ground mount,carport mounting rail
Applicable Module framed or frameless panel
Module Orientation landscape or portrati
Wind load 130mph(60m/s)
Snow load 30psf(1.4KN/m2)
Material aluminum alloy and stainless steel 304
Warranty

10years

2.Features of YUEFENG Solar rails

1).Easy Installation.

The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.


2).Great Flexbilitity.

The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3).High Accuracy.

Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4).Maximum Lifespan:

All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



5).Guaranteed Durability:

Wanhos Solar provides a guarantee of 10 years on the durability of all components used.



If you want to know about more information, please contact us or call me 0086 18662963676 (Urgent things), weblink:http://www.profiles-aluminum.comaluminum-extrusion.sell.everychina.com.

Brief Installation Plan for corrugated tin roof solar mounting system

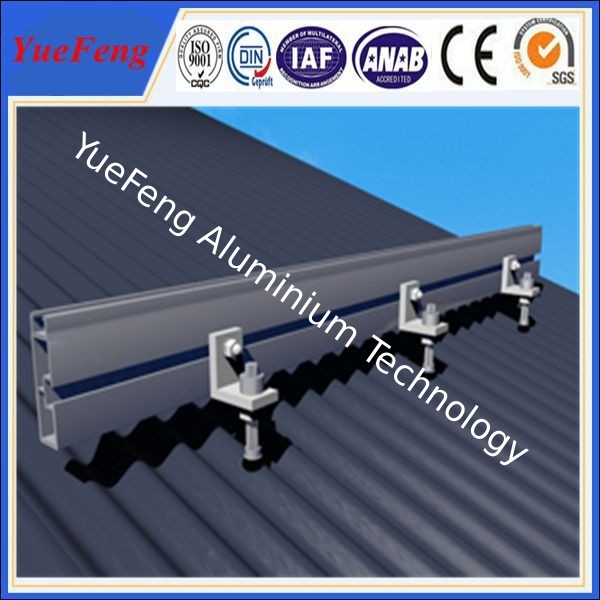

Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 0































1,L-feet group installation
  1),Mark the installation position
  2),Bolt L-feet to the rafter

2,Rail installation
  1),Slide the G-module into the rail and fasten it in the right position
  2),Install the rail on the L-feet with G-module
3,Pv panel Installation

Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 1































The Specification of PV Mounting Tin Roof Structure ,



ST Solar Tin Roof Hook System

Optional Size

Mid Clamp

35-50 mm

End Clamp

35-50 mm

 Roof Hook

For kinds of Metal Roof types



Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 2





























Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 3





























Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 4





























Home or commercial roof solar mounting bracket,Asphalt Shingles mount,pv mounting system 5





























Steel Ground Screw Anchor:

The Metal Ground Screw has been widely used in the conctruction of the Solar Power Plant from these years, for its

easily installation and the perfect perform in anti-corrosion wear-proof. With such metal ground screws, installtion

could be realized in so many kinds of places, such as those not so even ground or the ground with slopes, which will

largely reduce the cost for the plant construction. YUEFENG metal Ground Screw has been focusing on customising any

length and other requirements of the customer.



Technical Information:

Installation Sites: OPen Ground
Foundation Solustions: Concrete Foundation/ Steel Foundation
Main Materials: Steel Tube Q235B
Finishing: Hot-dip Galvanized
Fasteners Materials: Stainless Steel SUS304
Diameter: Φ76mm
Tube Thickness: 4mm
Length: 1000-2000mm
Finishing Thickness: ≥80µm
G.W/PCS 10-15kg
Loading/40'GP 1600-2200pcs
Packing: Steel Pallet with film PVC
Design Standards: JIS C 8955:2011; AS/NZS 1170; DIN 1055; IBC 2009
Warranty: 20-25 years life span
